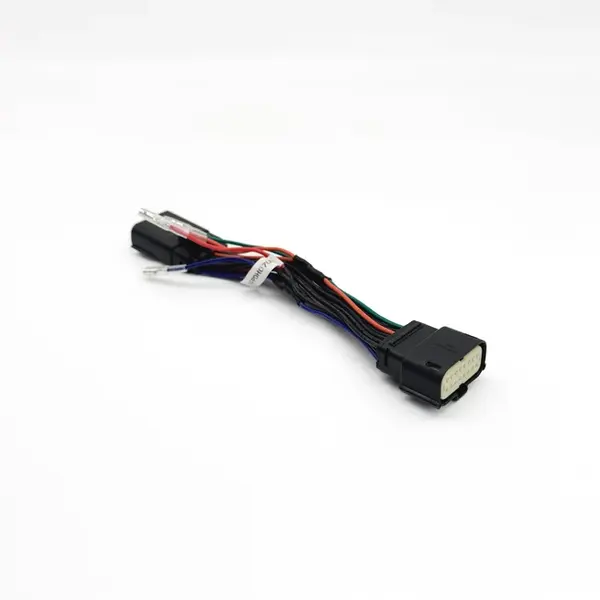

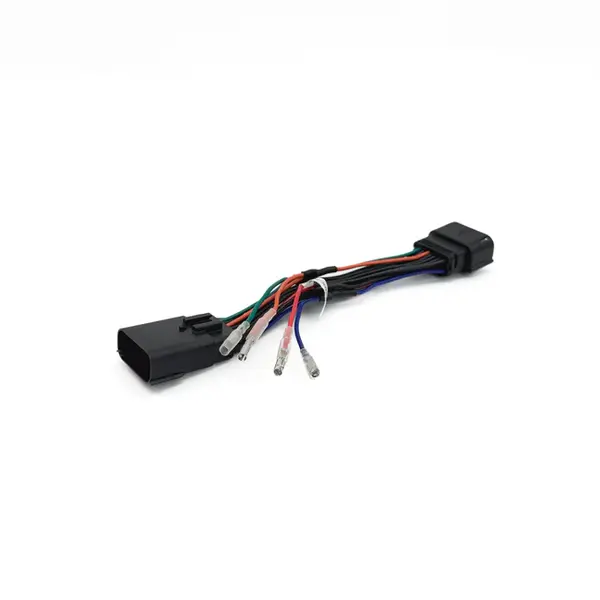

Lightforce - Headlight Patch Harness suits Next Gen Ranger/Everest
This specifically designed patch harness is for the Next-Gen Ranger & Everest and allows for simple and safe integration into the vehicle's headlight assembly without cutting or splicing into the electrical system.
Provides high beam positive, high beam negative, and low beam pickup points for a range of Lightforce driving lights wiring harnesses.
This patch harness is to be used with a range of Lightforce wiring harnesses and factory-style switches for a true plug & play solution, enabling simple DIY installation of auxiliary driving lights and switches.
Compatibility:
The Next Generation Ford Ranger & Everest have three headlight types which relate to the vehicle's trim level. Using the tables provided, select the correct installation method for your vehicle.
|
RANGER MODEL |
TRIM LEVEL |
|
XL, XLS |
Level 1 |
|
XLT, SPORT, WILDTRACK, SUPER DUTY |
Level 2 |
|
WILDTRACK X, PLATINUM, RAPTOR |
Level 3 |
|
EVEREST MODEL |
TRIM LEVEL |
|
AMBIENTE, TREND, SPORT, WILDTRACK |
Level 2 |
|
PLATINUM |
Not Compatible |
Patch Harness Wiring - Level 1
- Red - High Beam Positive
- Orange - Not Used
- Green - High Beam Negative
- Blue - Low Beam 12v Positive
Patch Harness Wiring - Level 2
- Red - High Beam Positive (in passenger footwell)
- Orange - Not Used
- Green - High Beam Negative
- Blue - Low Beam 12v Positive
Patch Harness Wiring - Level 3
- Red - Not used
- Orange - High Beam Positive
- Green - High Beam Negative
- Blue - Low Beam 12v Positive
