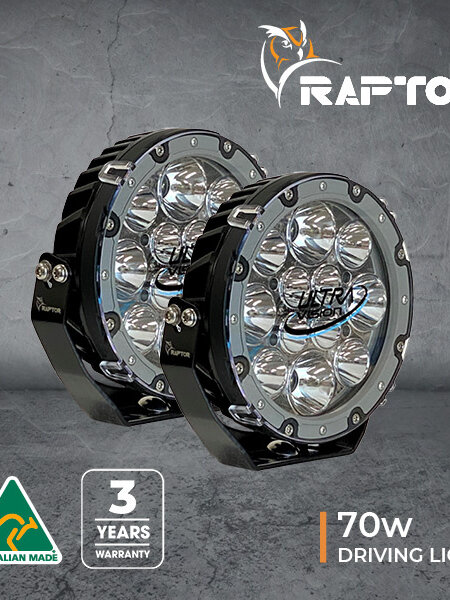

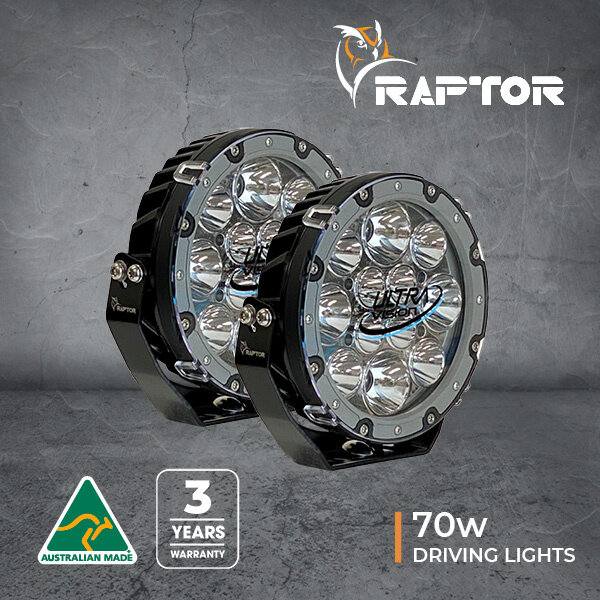

Ultravision Raptor 70 LED 7″ Driving Light (Pair) Inc harness - 5700k
The RAPTOR LED Driving Lights feature a high pressure die-cast aluminum housing, high impact polycarbonate lens and grey rims as standard. The superior optic designs give a combination beam with both good distance and width from one lamp type.
- Made in Australia – Designed and built for the toughest environments on earth
- Available with either 4000k or 5700k Colour Temperature

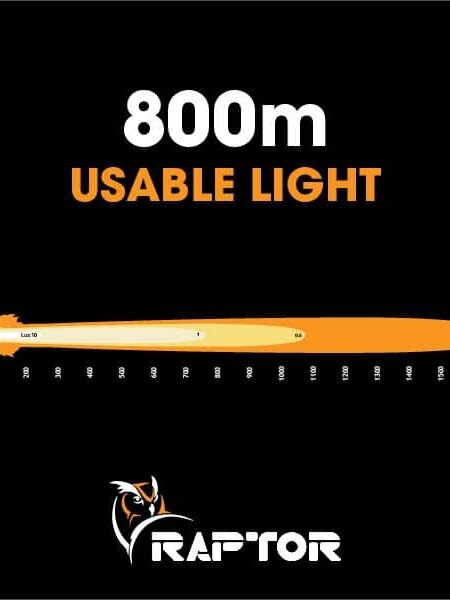

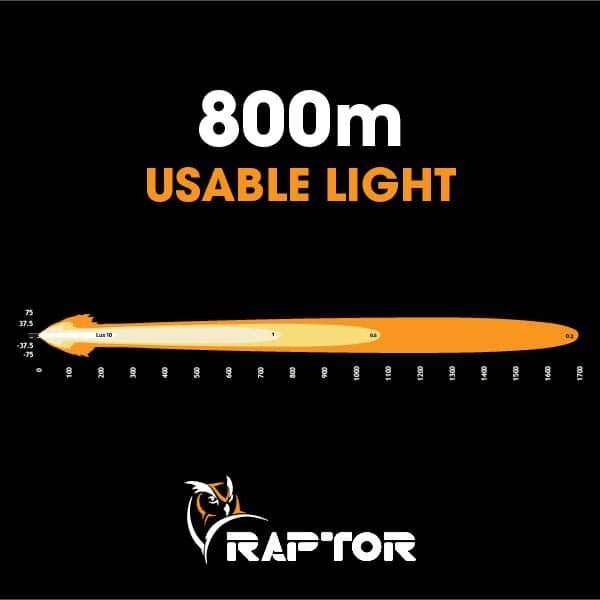

- 800m usable light
- Optional coloured rim kits available – 8 colours to choose from
- 3 Year Warranty
- Lifetime warranty on all brackets
- Wiring Harness included
SPECIFICATIONS | RAPTOR 70W |
---|---|
Wattage | 70W (per lamp) |
Light Source | 12 x 6W LED’s (per lamp) |
Light Output – Raw | 16,400 Lumens (per pair) |
Light Output – Effective | 13,284 Lumens (per pair) |
Voltage | 9-36V |
Current Draw | 10A @ 13.5V (per pair) |
Operating Temperature | -40°C to +80°C |
Waterproof rating | IP68 |
Connector Type | 2 Pin Heavy Duty Deutsch |
Housing | Die-Cast aluminium |
Lens Construction | Polycarbonate |
Bracket | Stainless Steel |
Colour Temperature | 4000K or 5700K |
Lifespan | 50,000 Hours |
Diameter | 170mm |
Net Weight | 1.3kg (per lamp) |
Mounting Suitable | Stainless Steel Bracket |
Beams Available | Combo |
Warranty | 3 Years |
Hi/Lo Wiring Harness included | Yes |
PART NUMBERS | |
Raptor 70 4000K | RAP070DL4V2/PR |
Raptor 70 5700K | RAP070DLV2/PR |
All Raptor products are manufactured in Australia
