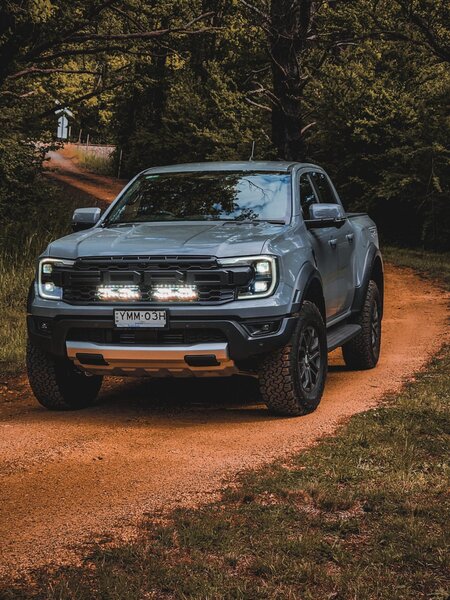

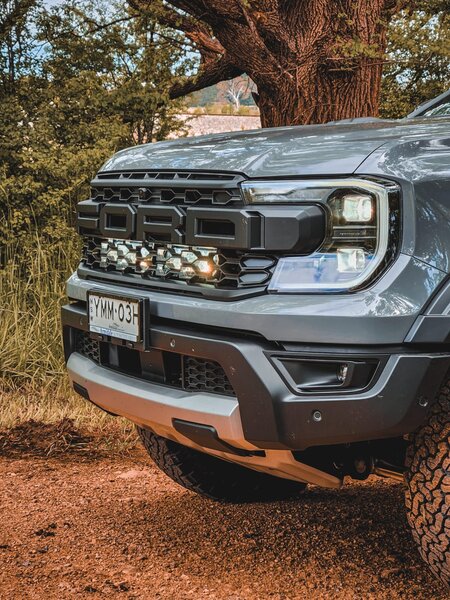

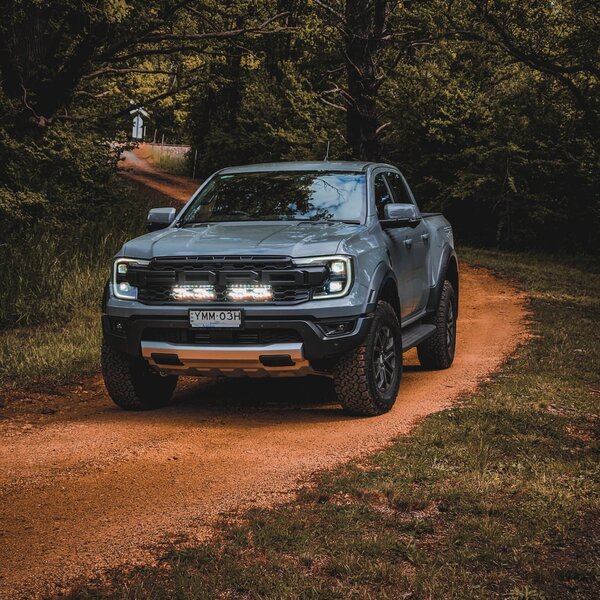

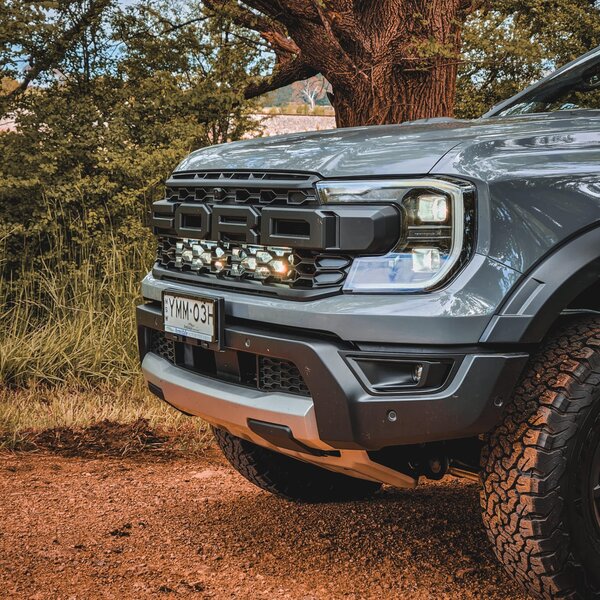

UltraVision - Ford Next-Gen Raptor & Wildtrack - Nitro Maxx Light Bar Behind Grill Kit - Suits 2022+

Specifically designed for the Ranger Raptor, this integration kit has everything you need to integrate the power of Ultra Vision with your vehicle, without having to invest in a bull bar.
$1,295.00
Availability: In stock (1)

This kit allows you to easily conceal two NITRO Maxx 105W 13″ LED Light Bars to your ranger with no cutting or drilling required! The bracket system is cleverly engineered so that it mounts to existing points on the body. Only the grille shroud beneath the bonnet needs to be removed temporarily for access.

The kit comess complete with a high-beam plug & play wiring connection that wires directly into the overhead auxiliary switches.

This comprehensive kit comes complete with:
• 2 x NITRO Maxx 105W 13″ LED Light Bars (5700k colour temperature)
• Purpose-built Ranger light bar brackets, 4mm steel, powder coated black
• High-Beam Plug & Play wiring loom
• Complete twin wiring harness including inline fuse & cabin switch
• Mounting hardware
• Fitting instructions

  • Widr® Optic – This unique reflector delivers market leading output, achieving huge distance with excellent spread
  • Combined usable light – 1300m
  • No cutting or drilling required
  • Solid fitment that doesn’t shake on rough roads
  • Designed and made in Australia for the toughest environments on earth
  • 5-year warranty
105W NITRO LIGHT BAR SPECIFICATIONS
Wattage 100 Watts
Light Source 20 x 5w LED's
Light Output – Raw 12,320 Lumens
Light Output – Effective 8,865 Lumens
Voltage 9-36V
Current Draw 8A
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP68
Connector Type Plugs 2 Pin std Deutsch
Housing 6063 T5 Aluminium
Outer Lens Construction Polycarbonate
Brackets Sliding Base / Side Mounts
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 324 x 92 x 84mm
Net Weight 1.9 kg
Beams Available Combo and Widr
Warranty 5 Years
Harness Included Yes
Part Number
